eiConsole v.18R2
Tutorial & Interface

eiConsole Tutorial Basic

Content Based Routing

Overview

This interface demonstrates how to accomplish content-based routing; that is, it is a demonstration of how to conditionally send data to an endpoint based on the data itself.

Content based routing may be used when:

• Data needs to flow conditionally to one or more target systems.
• Data should proceed conditionally.
• Data should process differently according to its contents; for example, when different data versions or data Formats originate from the same source.

How to Run This Example

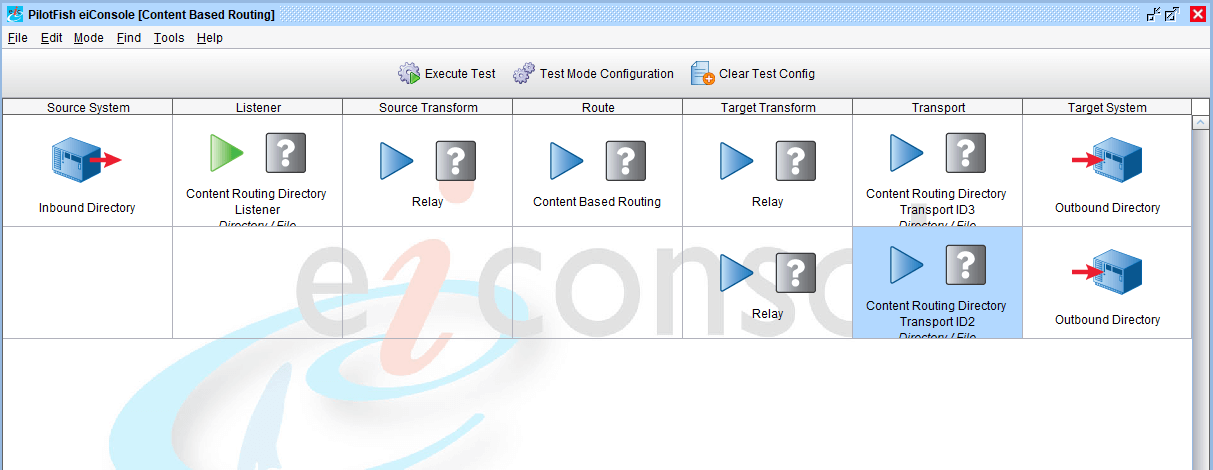

You may run from the Listener by configuring the attached environmental properties file, or from the eiConsole testing mode at any point in the process prior to the routing module itself, using the attached documents Sample2.xml and Sample3.xml.

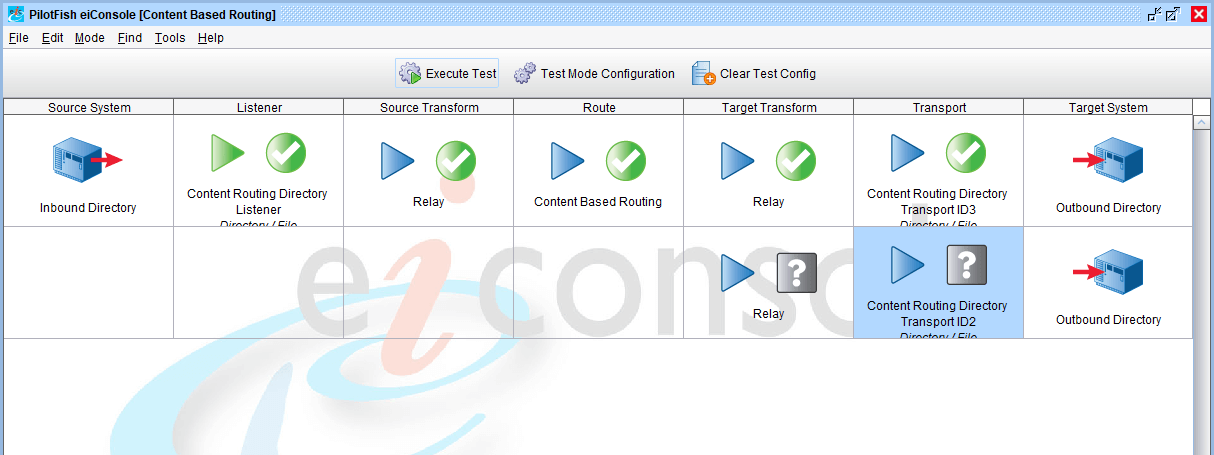

Sample2.xml will be routed to one Transport, and Sample3.xml will be routed to the other. The system utilizes the id to identify which transport to route to; Sample3.xml uses the Id=”3″ namespace, for example.

How it Works

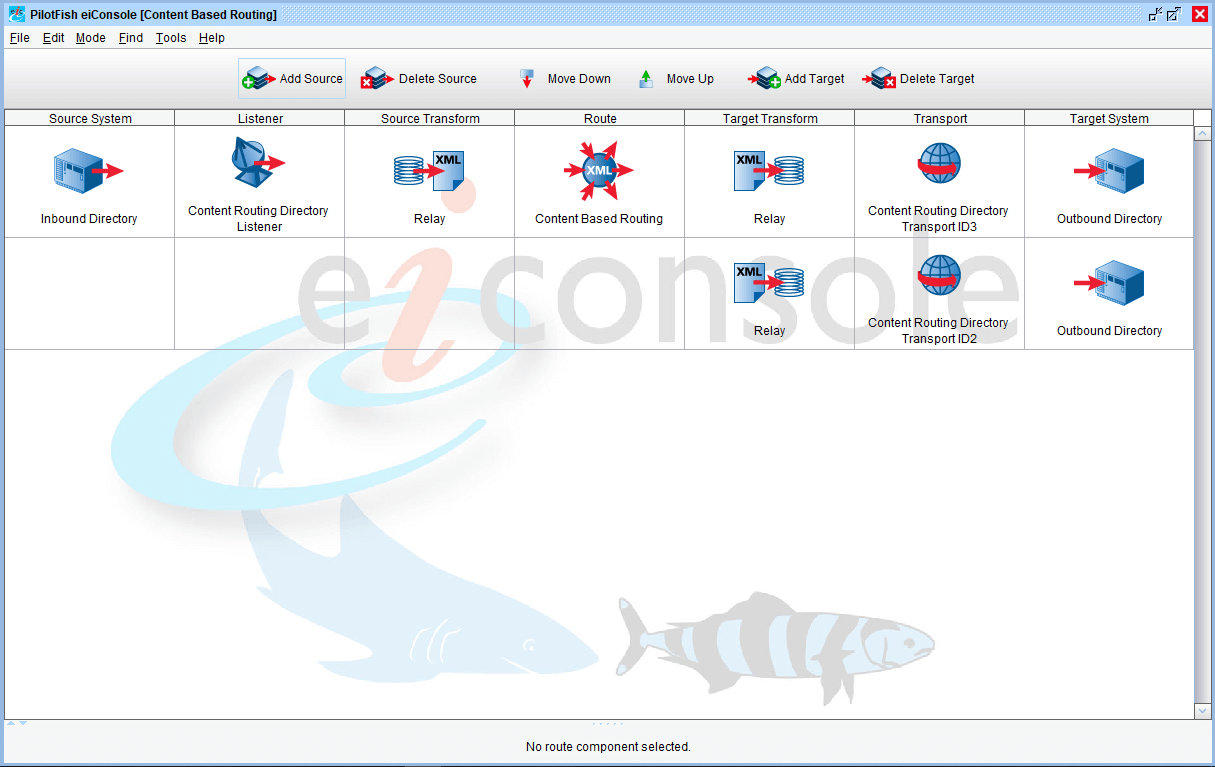

• The routing module is configured in the routing stage

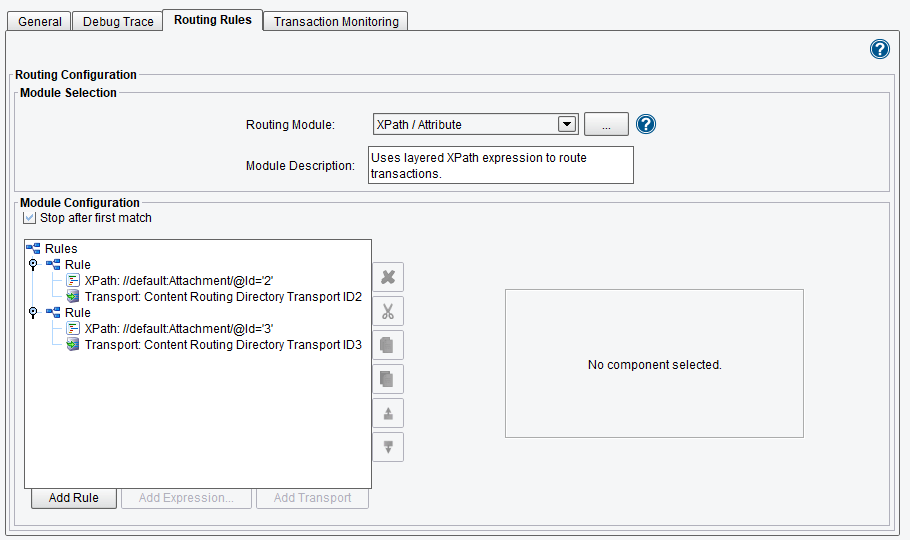

• Viewing the routing stage in the eiConsole, you will notice two rules.
• Each performs an XPath operation; if the XPath operation evaluates to a Node (if the given XPath target can be found in the data), that rule evaluates to true.

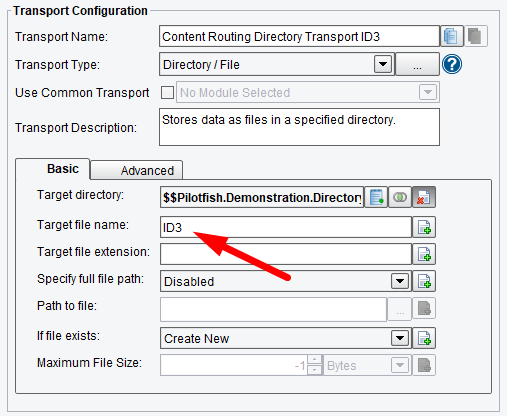

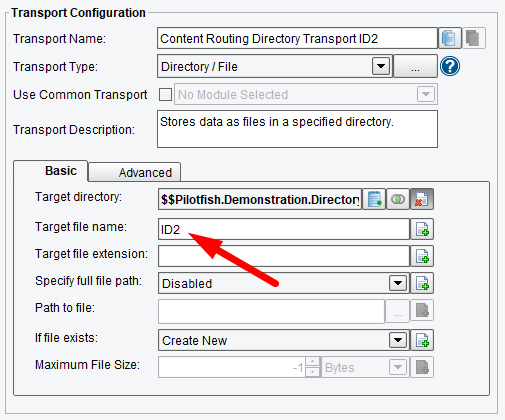

• If a rule evaluates to true, the configured transport is added to the list of valid Targets for the current transaction.

Note: that if “Accumulate Targets”, found in the root configuration of the routing module, is checked, it will send to all Transports in its list. If it is unchecked, only the first transport it identifies will be utilized.

How to Use This Example

Click the links below for the files you will need for this tutorial, then DOWNLOAD INTERFACE to get started. (Once logged into the eiConsole it immediately shows up in your “PIE” inbox for use.)

Sample Data

Sample Data

Configuration File

Interface Download

Note: if you are not logged in to the eiConsole, or have arrived at this page via a browser, you will be prompted to login before the interface downloads into your eiConsole “PIE” inbox. Or if you have not downloaded and installed a FREE eiConsole Trial you will have the opportunity to register after you click the Interface Download link. Once you are logged in the interface will automatically download into your “PIE” inbox. First, you’ll see a screen pop up indicating that a new product is ready for download. Select the Download Now button. Once you’ve downloaded the Interface you can drag it into your current Working Directory and begin.

Next, follow the tutorial and walk through it step-by-step. You may check your work against the provided Route (Sample Data).
