eiConsole Tutorial – Topology

Using Environment Properties

Note: The Quick Start and Foundation tutorials should be completed before proceeding with the Topology Tutorials.


In this tutorial, we’ll cover the uses of environment properties, how to configure them, and what they are used for. In addition, this tutorial expands on the eiConsole Basics tutorials, such as configuring Listeners and Transports, as well as testing.

Before You Begin

Zip File IconUsing Environment Properties
Working Directory

Download the file with the sample Working Directory and unzip it on your computer to a convenient place. In our case, it’s c:\Users\{USER _NAME}\PilotFish eiConsole Working Directories\Expressions Using Environment Properties where {USER_NAME} is the user’s name.

Open the eiConsole, locate your Simple Route directory, and open it. The Expressions – Using Environment Properties route is included in the working directory. Your Route File Management screen will open, as shown below.

Next, follow the tutorial and walk through it step-by-step.

Click on the Expressions – Using Environment Properties route.

Most modules in the eiConsole, such as Listeners, Processors, Transports, and so forth, make use of configuration items, which, so far, we’ve primarily configured as static, constant values. For example, we’ll use a Directory/File Listener’s configuration:

In this case, we’ve typed the value for the Polling directory item. It’s currently set to “..\..\in.” We’ve also set the Polling interval to check the specified directory for new files every 5 seconds. This approach has been quite workable for building our interfaces and testing them. However, suppose we need to move this interface from our workstation to another or, more importantly, to a testing or development environment. As is, we’d need to load up the route in an eiConsole on that machine and make the appropriate changes. Then, when we move the interface from the testing machine to a staging environment or even to production, we would once again need to edit the route.

Now, suppose our interface is made up of many routes, each with multiple Listeners and Transports. Some might be interacting with folders, meaning we’d need to change the paths each time. Others might be querying and updating databases, meaning we’d need to change connectivity information, including usernames, passwords, connection strings, driver names, etc., each time. The problem of moving interfaces from environment to environment quickly scales up as the complexity of an interface grows.

Fortunately, there’s a pretty simple, straightforward solution: Environment Properties. Environment properties are property values defined in an external file that exists, relative to an interface, at a fixed location (the root directory). We can edit and use the contents of this file from within the eiConsole by going to the Edit menu and selecting Environment Properties.

This will open the Environment Properties dialog.

Defining Our Source Directory and Polling Interval

Here we have the contents of the Environment Properties file shown in a table. The “key” is the name of the property and the “value” is its current value. Let’s try defining our source directory and polling interval here by adding two rows: the first key is source_directory, and its value is ..\..\in; the second key is polling_interval, and its value is 5.

We could add as many keys and values as we wished, so long as each key has a unique name. It’s generally a good idea to qualify keys by intent or through some namespace. We can then click the Save button to save our changes.

After saving, click Close to close the dialog. Returning to our Directory/File Listener’s configuration, we’ll note a button visible to the right of each configuration item with a document+ icon on it.

This button enables Enhanced Configuration Values, meaning it provides access to various dynamically evaluated expressions, including our defined environment properties. Click the button and it should be replaced by three more.

The first button allows us to select from defined environment properties. The second will enable us to construct OGNL expressions (covered in another tutorial). Finally, the third returns us to “standard” configuration values. Click the first button and it will open a dialog showing our defined properties:

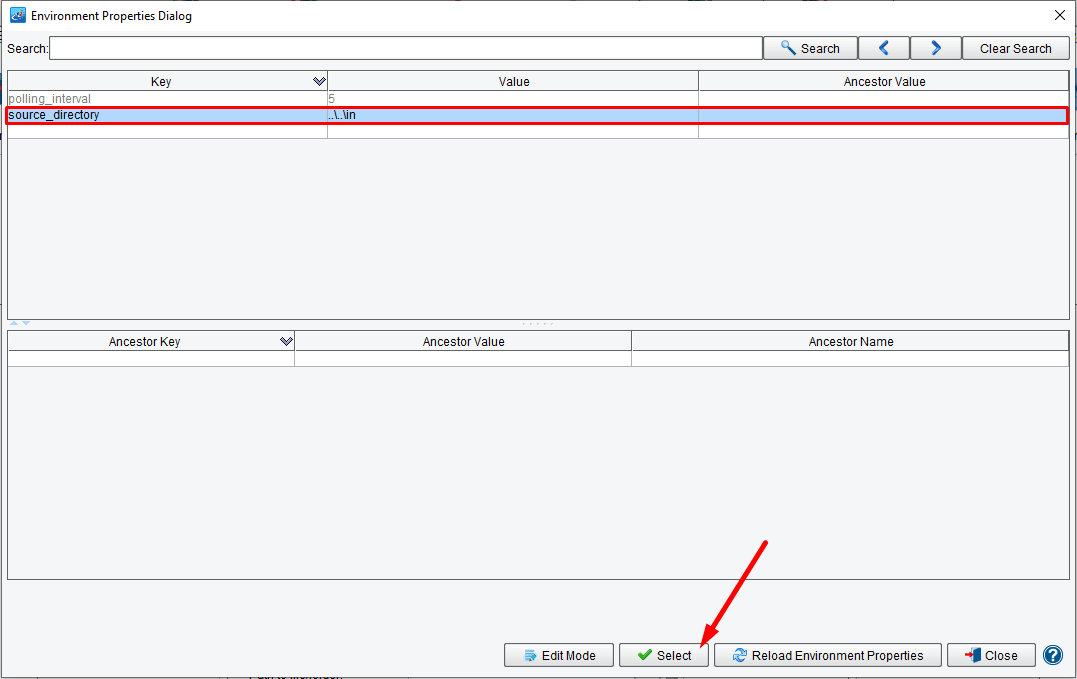

For this item, we’ll select “source_directory.” Select it in the table, then click the Select button:

Our configuration item’s value now looks like this:

The “$$source_directory” text tells us that we’re looking for an environment property named “source_directory.” The “=..\..\in” simply tells us the current value of that property, as understood by the eiConsole.

Repeat the exercise for the Polling Interval item:

Now, whenever we move this Route between systems, we can either make our changes in the eiConsole Environment Properties dialog or edit the file directly. If we examine our working directory, we’ll see it now looks like this:

We now have a file named “environment-settings.conf” – this is the external file. You can open it in any standard text editor; do so now and you should see the following:

When we move our interface between systems, we only need to update this single file. If the interface exists already on a particular system then our deployment is simply a matter of not copying over it.

Using Environment Properties in the eiConsole module configuration items allows for externally defined values for Listeners and Transports which you can now use. Next, move on to more advanced topics like Expressions – Using OGNL.
