eiConsole v.24R1
Tutorial 30 mins

eiConsole Foundation Tutorial

Target Transformation Introduction

You will need to navigate to the Working Directory c:\Users\{USER _NAME}\PilotFish eiConsole Working Directories\Foundation where {USER_NAME} is the user’s name which was included in the sample files you downloaded in the first Foundation Tutorial – Creating a Working Directory.

Note: the Tutorials in eiConsole Foundation, 1-13, are modular and are designed to be used in the sequence presented.

Interface Target Transform XML Pilotfish

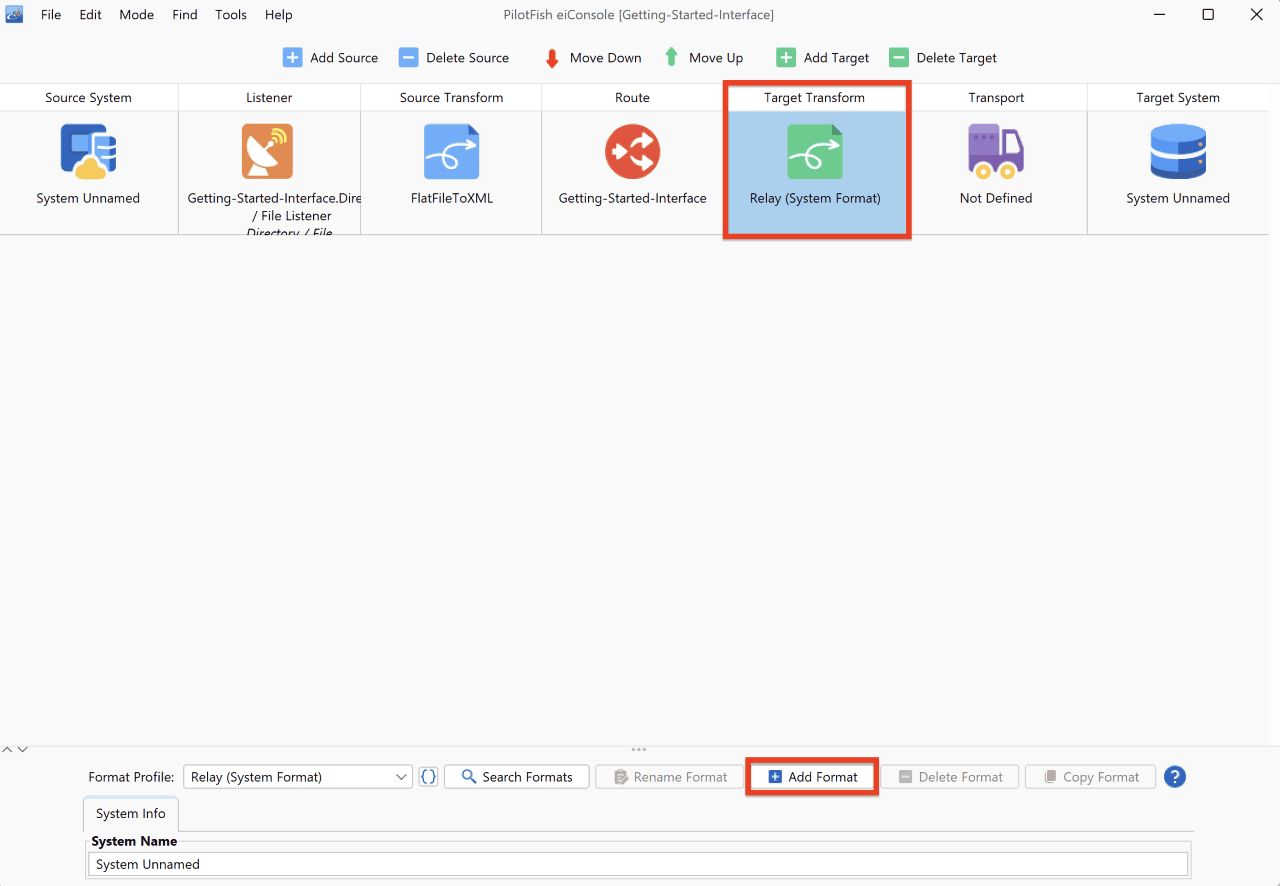

When you click the Target Transform stage, you will see that no format has been added. Even though a transformation is unnecessary here, you need to indicate which format to use. For this interface, you will use the Relay format. Click the Add Format button.

Interface Target Transform XML Pilotfish

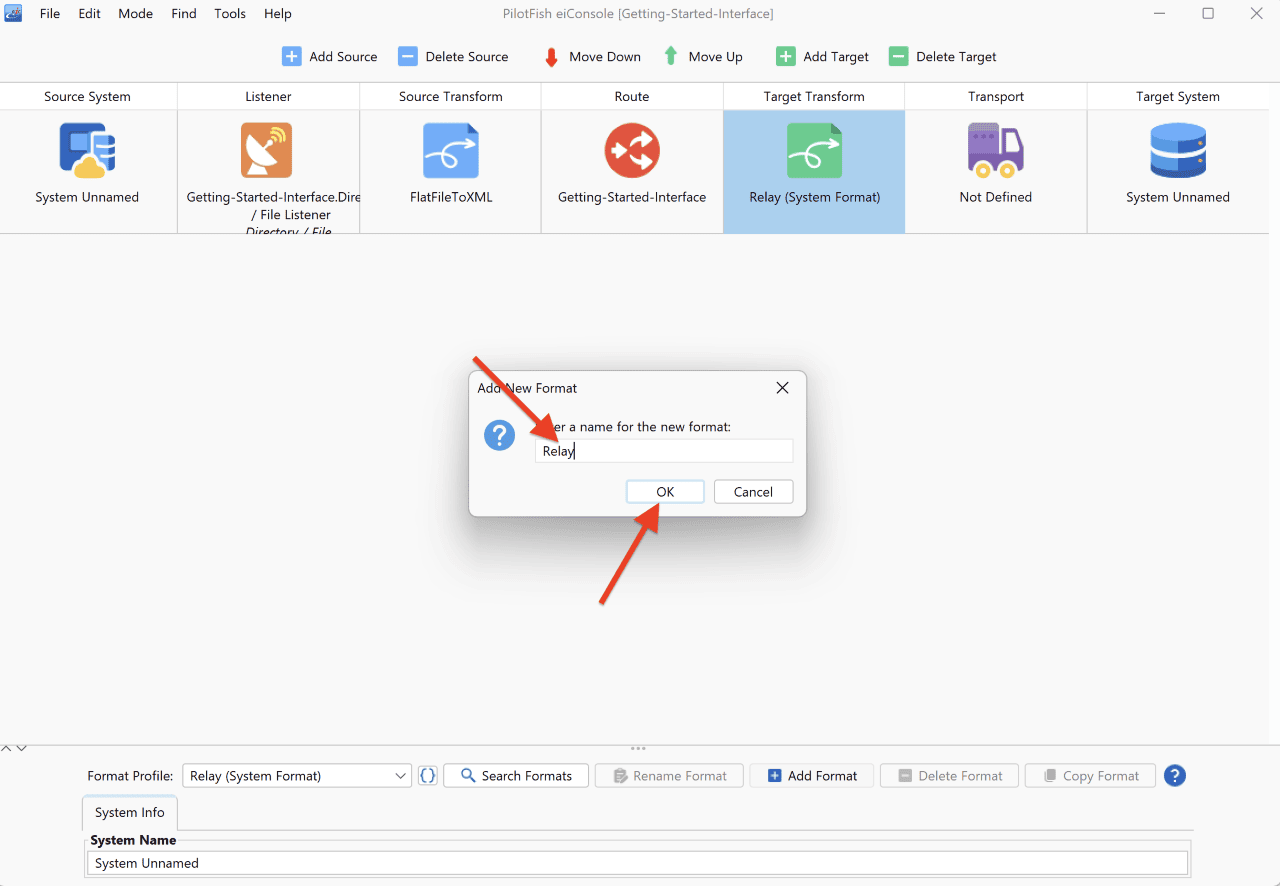

When the Add New Format dialogue panel opens, enter “Relay” and click OK.

Interface Target Transform XML Pilotfish

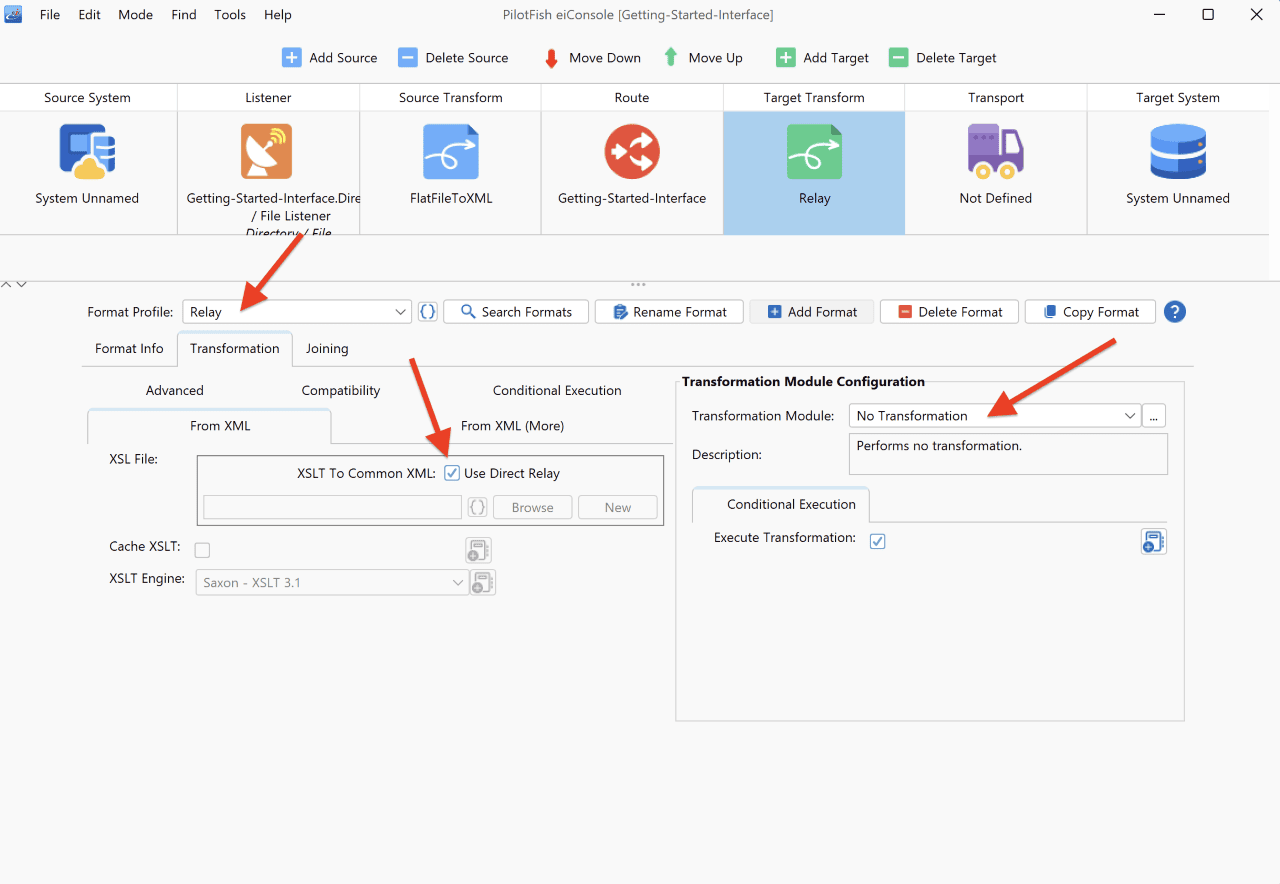

This opens the configuration panel in the bottom half of the window. The Relay transform sends the transaction data to the next stage unchanged. Even though a transformation is unnecessary here, you must indicate which format to use. Also, for this interface, you will use the Relay format – which now appears on the Format Profile fielderface, keep the default From XML configuration for this interface and keep Use Direct Relay checked. The Transformation Module should be set to the default – No Transformation.

Interface Target Transform XML Pilotfish

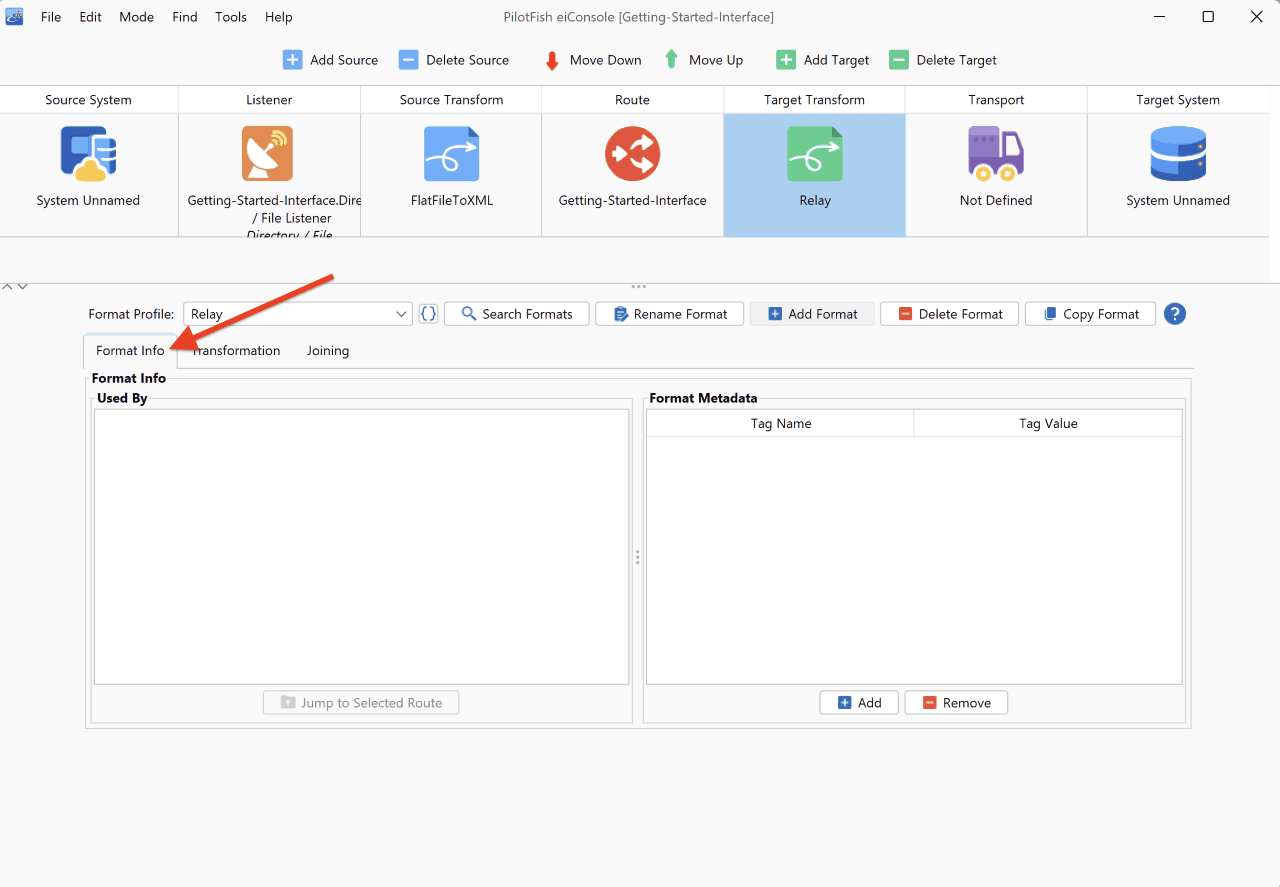

Just like what you have observed at the Source Transform stage – at the Target Transform stage, you can add the Metadata for the Target interface. To do that, use the Format Info tab.

Next, proceed to the transport configuration tutorial.
