eiConsole v.24R1
Tutorial 30 mins

eiConsole Foundation Tutorial

Configuring a Transport

You will need to navigate to the Working Directory c:\Users\{USER _NAME}\PilotFish eiConsole Working Directories\Foundation where {USER_NAME} is the user’s name which was included in the sample files you downloaded in the first Foundation Tutorial – Creating a Working Directory.

Note: The Tutorials in eiConsole Foundation, 1-13, are modular and are designed to be used in the sequence presented.

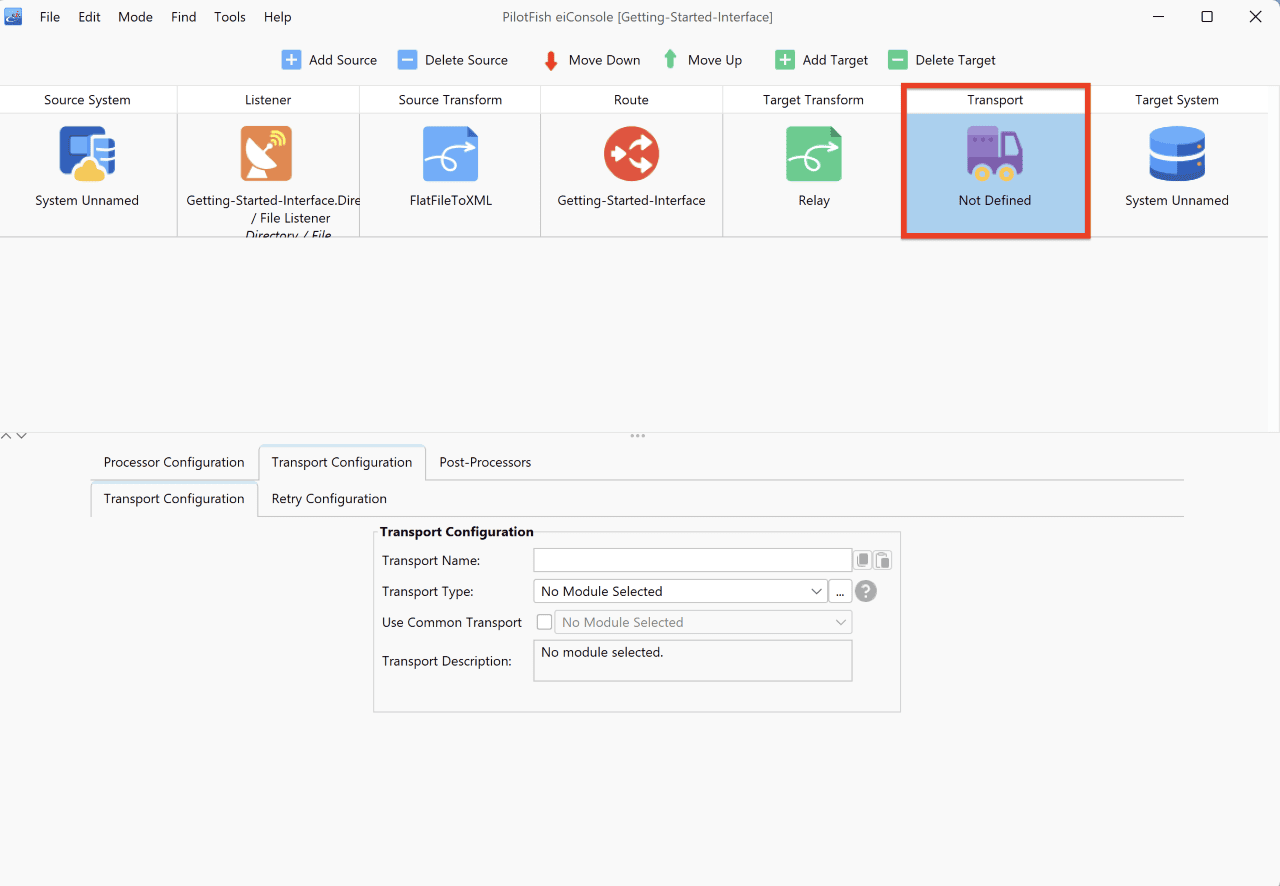

eiConsole Transport Stage Transforms Data for the Target System

The Transport stage allows you to configure how the eiPlatform or eiConsole should transmit the data to the Target System.

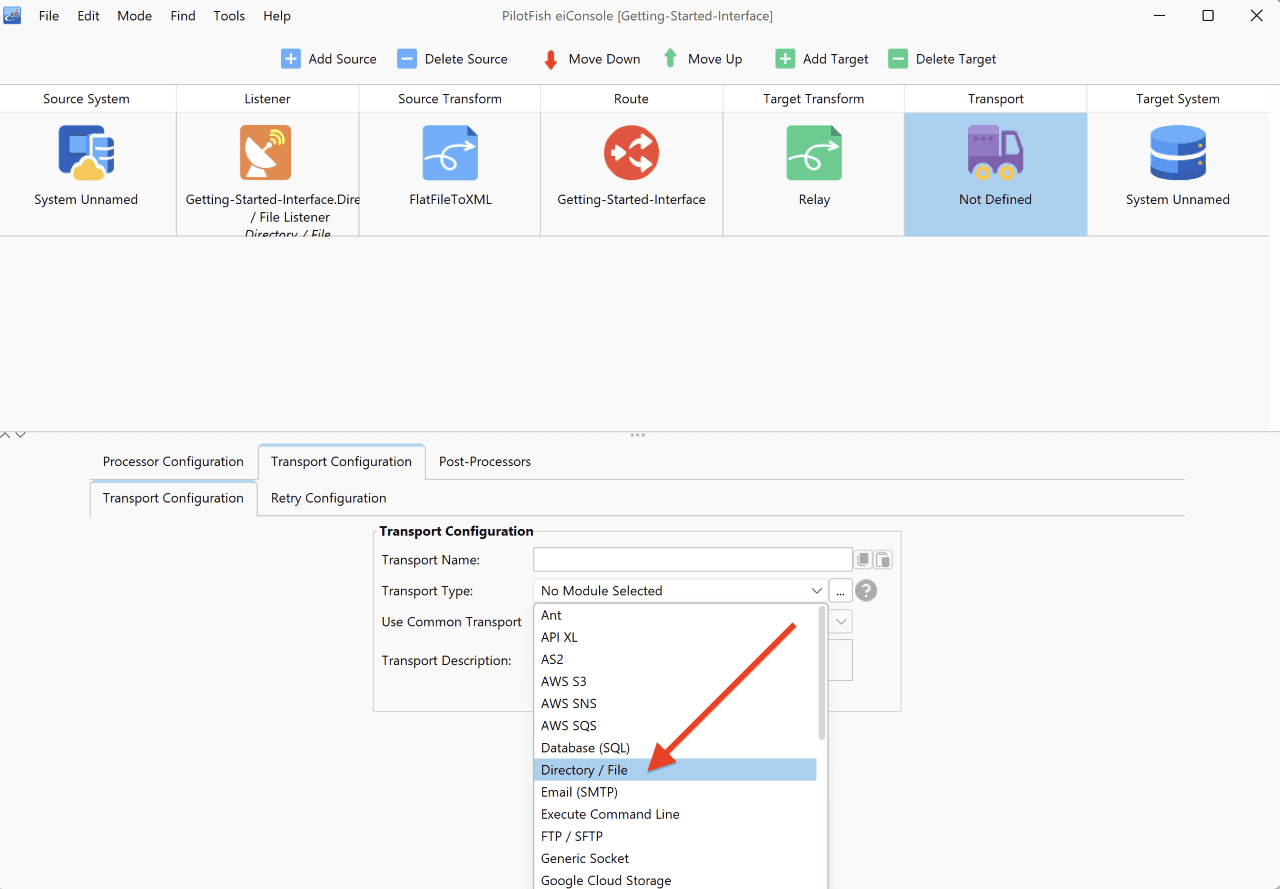

Select a built-in data transformation type from the transport configuration.

In this tutorial, you will drop the data to be processed into a Directory. Set Directory/File as the Transport Type from the drop-down. Notice that the eiConsole includes a full range of Transport Types.

See the complete list of available Transports in the PilotFish Platform.

Select the Target Directory for the Data.

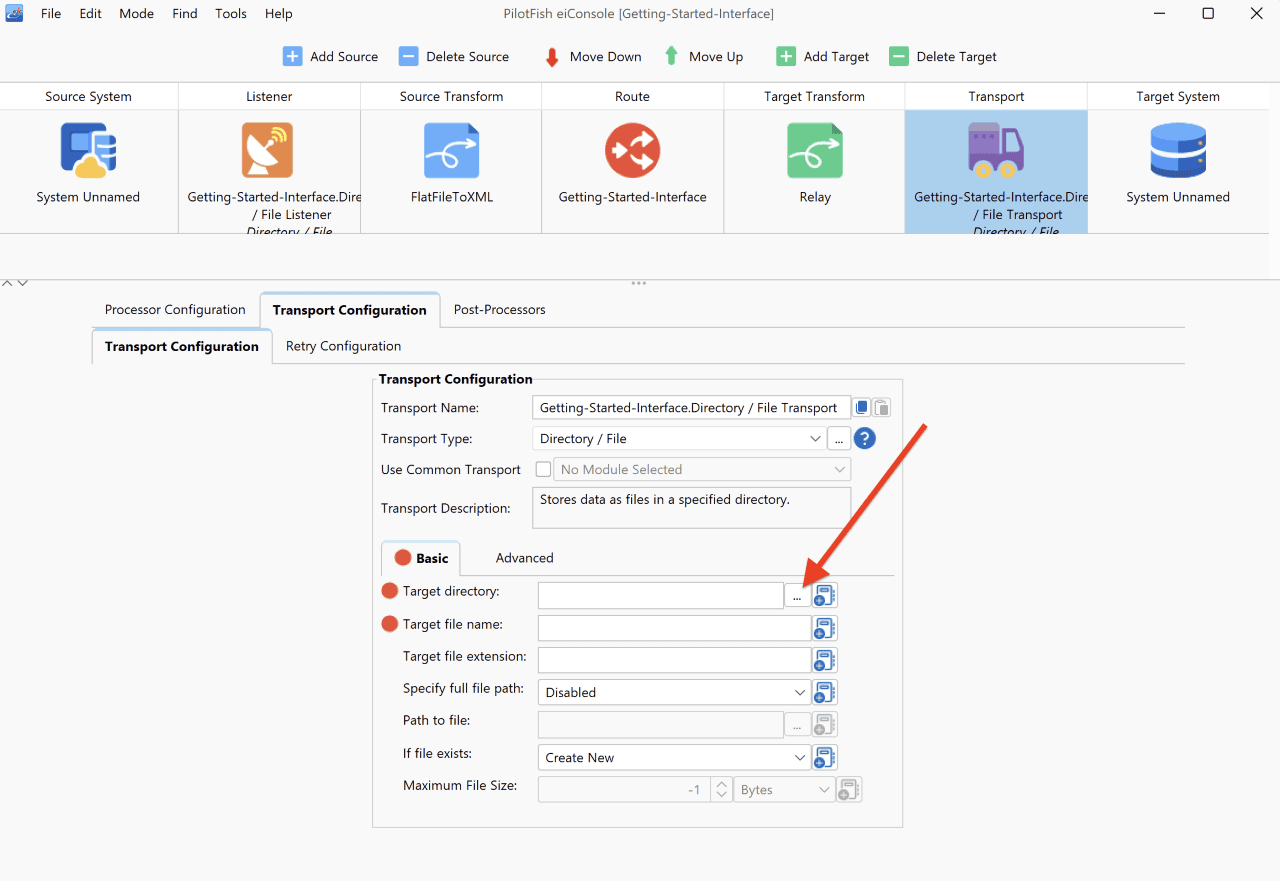

When you select the Directory/File Transport, you will see 2 tabs open: Basic and Advanced. For this interface, you only need to work with the Basic Tab, which includes the following fields: Target directory, Target file name and Target file extension. To select the Target directory, choose the Ellipsis button.

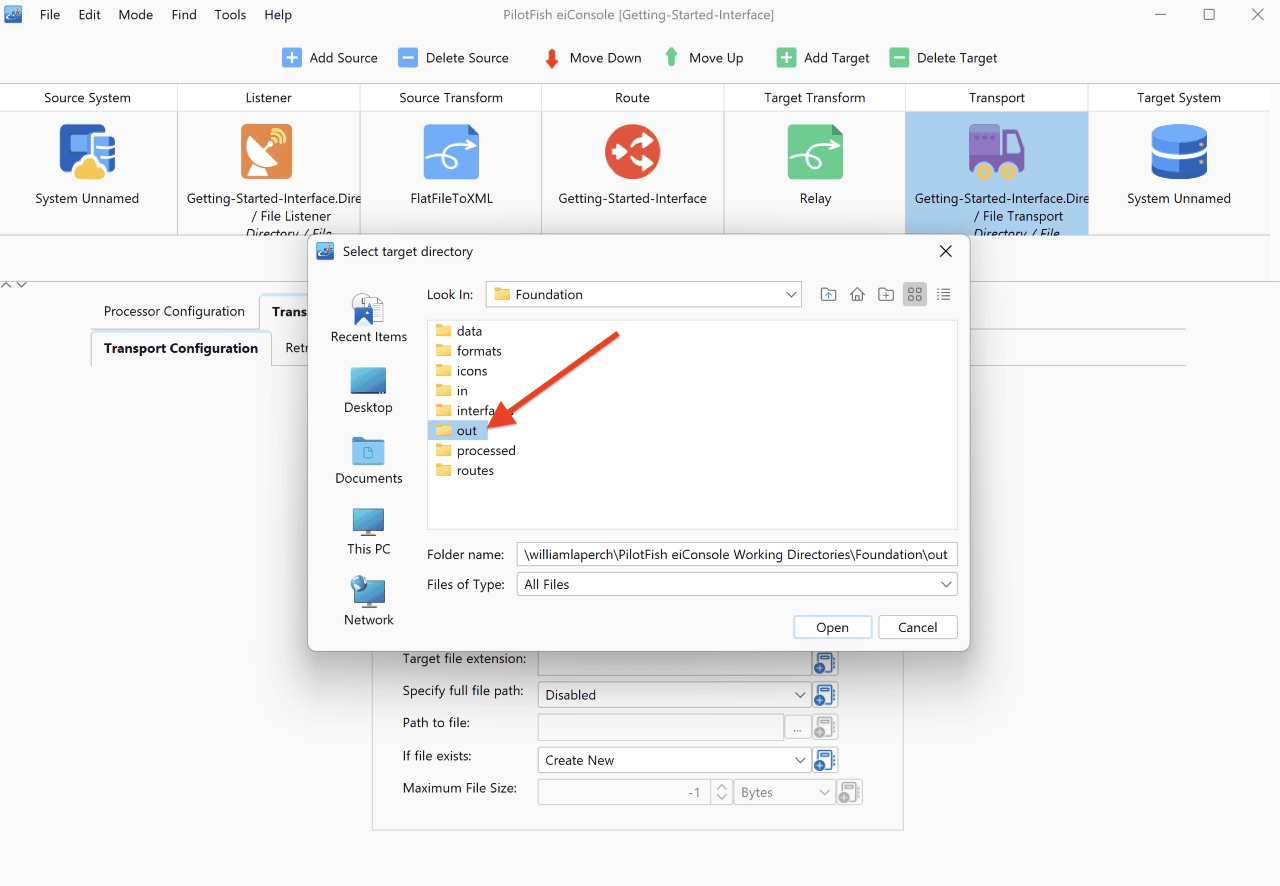

Navigate to the target directory folder.

When the Select target directory dialogue opens, navigate to your Working Directory. Select the “out” folder, then click Open.

Note: Best practice is to use separate directories for input and output, otherwise it creates ambiguity in the system.

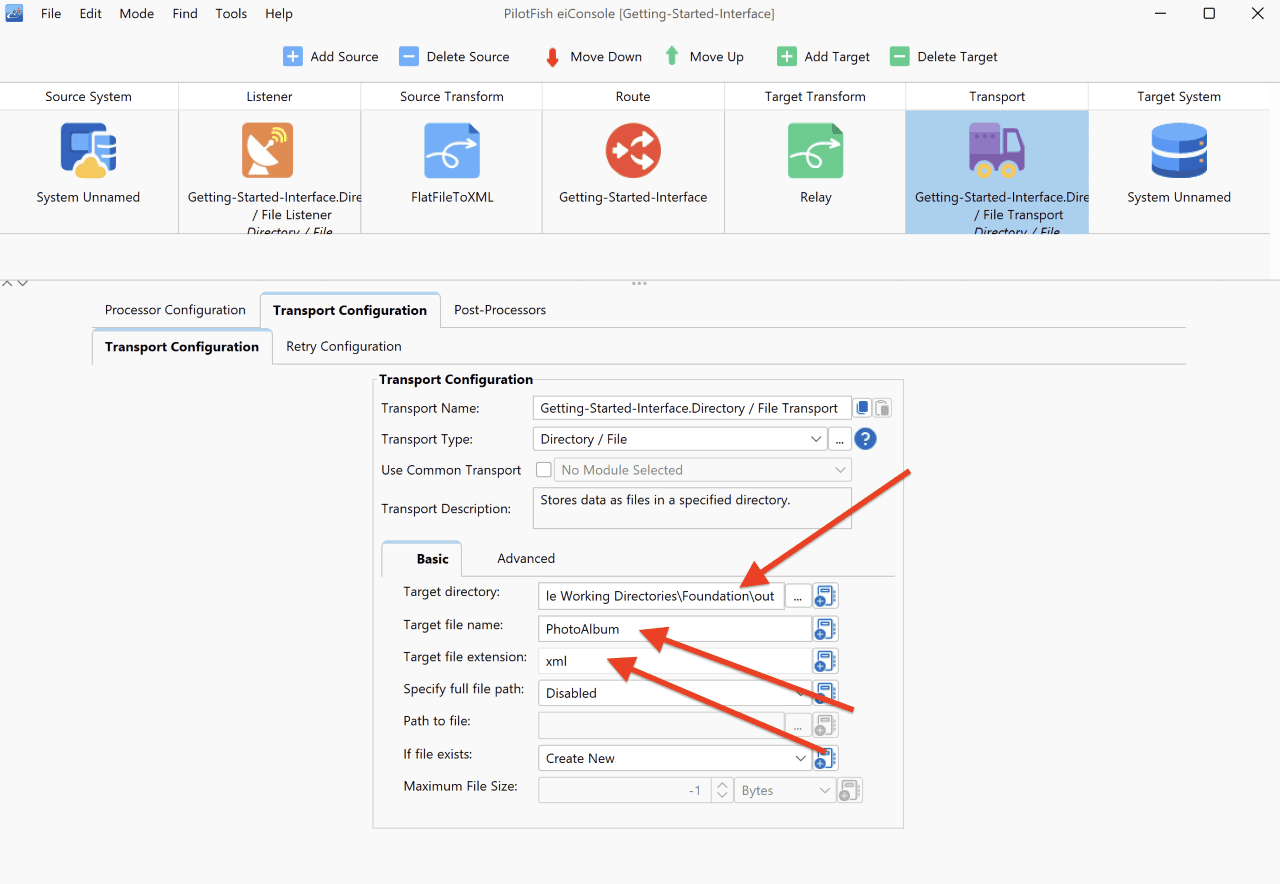

Configure the Target Data File Directory, Name & Extension.

The drop folder now appears in the Target directory field. In the Target file name enter “PhotoAlbum.” In the Target file extension enter “xml.

You have now configured each of the key stages in the eiConsole interface. Continue to the next tutorial, Adding a Target name and icon.
