Transaction Event Listener

The Transaction Event Listener in the eiConsole and eiPlatform activates on desired transaction events.

Transaction Event Listener in PilotFish Integration Engine

Listener (Adapter) Configuration Drop-Down List

Event Transaction Event Listener Configuration Options

On the Event configuration tab, you can specify the event type to listen to:

Transaction Begin (TRANSACT_BEGIN event type), Transaction End (TRANSACT_END), Stage Begin (STAGE_BEGIN), Stage End (STAGE_END), Stage Error (STAGE_ERROR), Transaction Fork (TRANSACTION_FORK), Transaction Join (TRANSACTION_JOIN), Transaction Lost (TRANSACTION_LOST), Originating Txn Complete (ORIGINATING_TRANSACTION_COMPLETE)

Transaction Event Listener in PilotFish Integration Engine

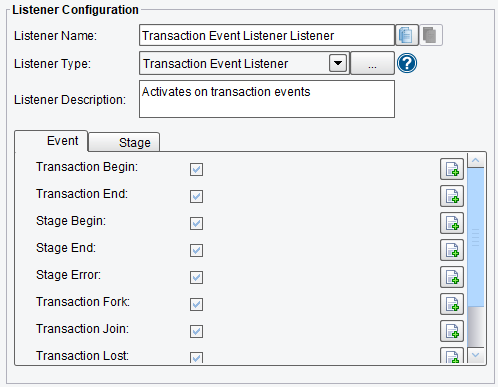

Transaction Event Listener Event Configuration Options (top half of screen)

Transaction Event Listener in PilotFish Integration Engine

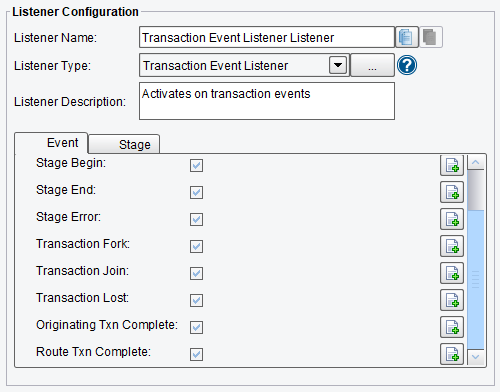

Transaction Event Listener Event Configuration Options (bottom half of screen)

Stage Transaction Event Listener Configuration Options

On the Stage tab, you can specify one or several Stages of the assembly line where the Listener fires: Listener, ProcessorXSLT, Transformation, Joining, Routing, Forking, Transport, Infrastructure.

Transaction Event Listener in PilotFish Integration Engine

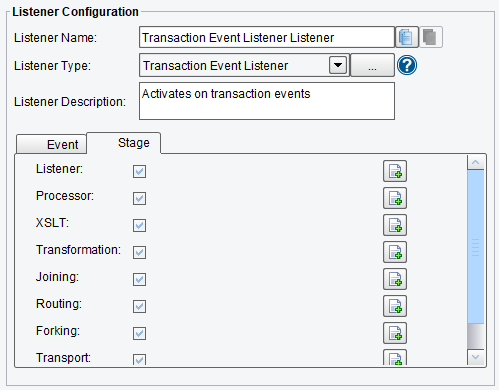

Transaction Event Listener Stage Configuration Options (top half of screen)

Transaction Event Listener in PilotFish Integration Engine

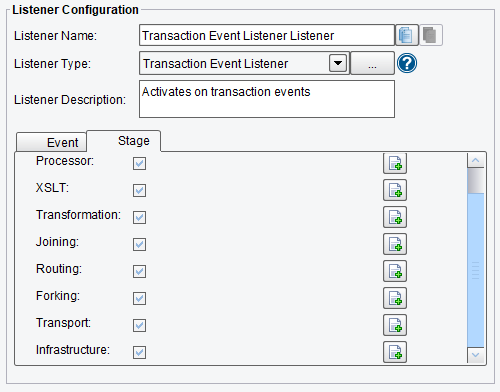

Transaction Event Listener Stage Configuration Options (bottom half of screen)
