Excel Sheet Conversion Processor

The eiConsole and eiPlatform have the native capability to accept an XLS file or Excel spreadsheet for conversion into an XML format. There are two ways to do this. First, you can use the Excel Sheet Conversion Processor.

any-processor-00-13-16-r1

Select the Processor Configuration tab and click on Add Processor.


processor-excel-sheet-converter-01-13-16-r2

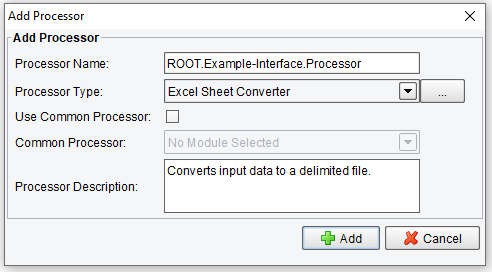

Select the Excel Sheet Converter Processor from the drop down.


processor-excel-sheet-converter-02-13-16-r1

On the Basic tab you will see a Sheet Index configuration item. This asks you to provide the Excel worksheet that you wish to convert into XML. By default this is “0” – which would be the first sheet.


processor-excel-sheet-converter-03-13-16-r1

On the Advanced tab you can choose to enter a custom Column or Row Delimiter.
The output of this Processor will be an XML based representation of the Excel file that was converted.

processor-excel-sheet-converter-04-13-16-r1

In the Conditional Execution tab you can set additional processor execution conditions. The Transaction data dependent condition may be specified here as enhanced expression. If this expression returns anything other than TRUE (ignore case) – this processor will be skipped.
