eiConsole – B2B Processors (Adapters)

eiConsole Processor Types (Adapters)

Easily Connect to Any Source System or Service and Configure It Using the Wide Range of B2B Adapters and Processors Available in the eiConsole

With the eiConsole’s Adapter Processors component the user can connect to any Source system or service regardless of the communication protocol. By way of a graphical Interface, the user can not only configure Listeners, but Processors can also be configured at this stage. Processors perform operations that affect all of the incoming data, and they may be layered in any order.

Immediately after the eiPlatform (the Java framework runtime component) accepts data you will have the opportunity to apply Processors. Similarly, before sending data to a Target System, you can again apply Processors. Processors are a mechanism to do general work over the data stream, either directly after it is received or immediately before it is sent. You can implement as many Processors as you would like at these two locations.

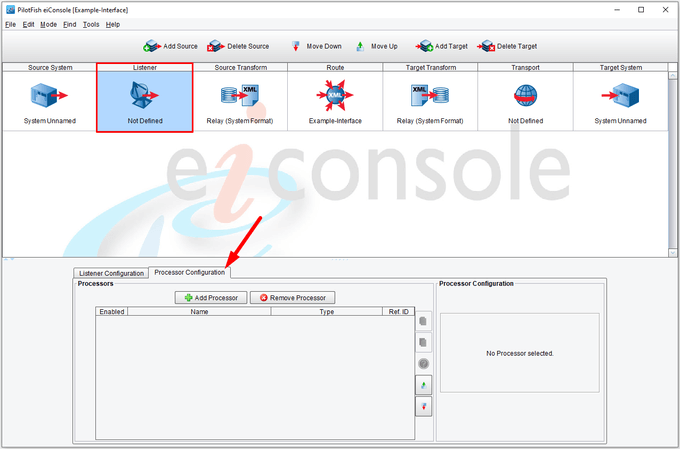

Choose the Processor Configuration Tab


This stage offers a wide range of time-saving features to the user. To add a Processor, simply click the Listener or Transport icon in the main Route grid. Then select the Processor Configuration Tab. To add a Processor click the Add Processor button.

Click on the Add Processor Button


Next, give the Processor a meaningful name and select the desired Processor type from the drop-down list.

Processor Configuration Drop-Down List


The Processor description text area provides a meaningful description of the chosen Processor capabilities. Next, select the Add button.

Add the Processor by Clicking the Add Button


The Processor that was created will now appear in the Processor grid.

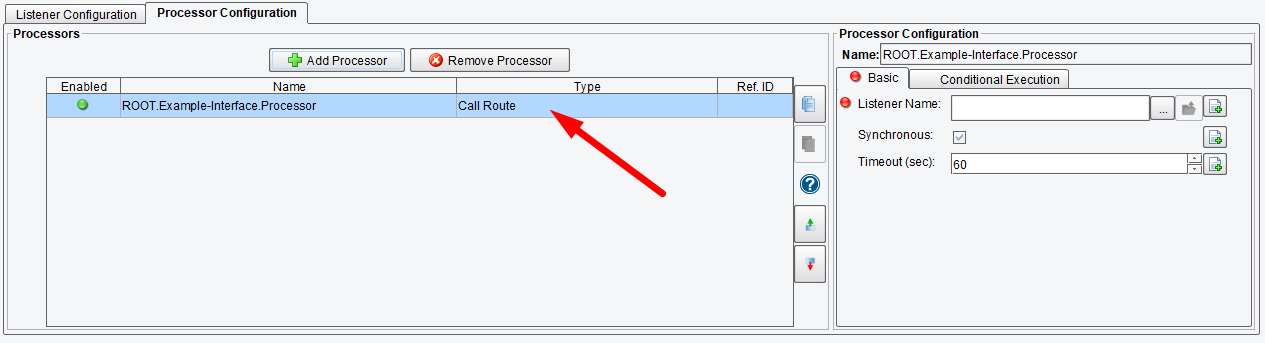

List of Processors Selected


If you have multiple Processors, they can be added with the same process. These Processors can be reordered to match the order of execution for your interface by simply using the Move Up and Move Down buttons.

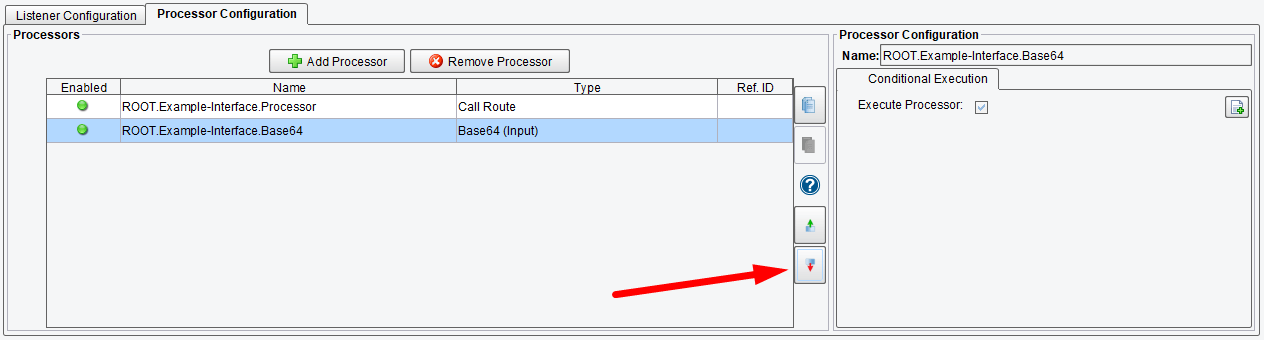

Arrange the Order of Processors


The eiConsole has 143 Processors (Adapters) included with it out-of-the-box. Click on any of the links below for detailed information of the many configuration options available for each Transport. The most popular Processors are highlighted in bold.



B2B Adapters – Processors
AL3 Compression ProcessorExecute Script ProcessorSHA1 Hashing Processor
AL3 Decompression ProcessorExecute XQuery ProcessorSOAP Attachment Processor
AL3 Delimiting ProcessorFTP Operation ProcessorSOAP Unwrap Processor
API XL ProcessorFile Deletion ProcessorSOAP Wrap Processor
AWS S3 Listing ProcessorFile Operation ProcessorSchema Validation Processor
AWS S3 Operation ProcessorFile Time Setter ProcessorSkip SNIP Validation Rules Processor
AWS Secret Retrieval ProcessorFile Writing ProcessorSplunk Event Logging Processor
AWS STS Role Token Retrieval ProcessorFOP ProcessorStatic Attribute Map Processor
AWS Transcribe ProcessorGZIP Compression ProcessorStatic File Processor
Ant Project ExecutionGZIP Decompression ProcessorStore Attribute Processor
Asymmetric Decryption Processor *Hashing ProcessorStream Normalizer Processor
Asymmetric Encryption Processor *Hex (Output) ProcessorSymmetric Decryption Processor (Dummy)
Attribute Assertion ProcessorHL7 Identification Processor *Symmetric Encryption Processor (Dummy)
Attribute Concatenation ProcessorHL7 Validation ProcessorSynchronus Response Processor *
Attribute Removal ProcessorHTTP Response Headers ProcessorTAR Compression Processor
Authentication ProcessorHTTP Response Status Code ProcessorTAR Decompression Processor
Azure Blob Storage ProcessorImage to PDF ProcessorText Scrape Processor
Azure File Storage ProcessorJSON Formatting ProcessorThrottling Response Processor
Base64 Input Processor *JSON Web Token Generator ProcessorToken Introspection Validation Processor
Base64 Output Processor *JSON Web Token Validation ProcessorTransaction Attribute Population Processor *
Blank XML Into Data ProcessorJSONPath Evaluation ProcessorTransaction Audit Processor
Call Route Processor *Jasper Reports ProcessorTransaction Data Population Processor
Character Encoding ProcessorJava Objects (Input) ProcessorTransaction Database Insertion Processor
Command Line Data Escaping ProcessorJava Objects (Output) ProcessorTransaction ID to Attribute Processor
Command Line XML Generator ProcessorListener Triggering ProcessorTransformer – AL3 / XML
Compare to Reference XML File ProcessorLog Message ProcessorTransformer – CSV / XML
Compression (ZIP) ProcessorMD5 Hashing ProcessorTransformer – Delimited and Fixed-Width File / XML
Counter ProcessorMIME Attachments Input ProcessorTransformer – EDI / XML
DICOM Input ProcessorMIME Attachments Output ProcessorTransformer – Excel / XML
DICOM Output ProcessorMIME Configured Input ProcessorTransformer – HL7 2.x / XML
DOC Text Extractor ProcessorMIME Configured Output ProcessorTransformer – JSON / XML
Data Attribute Swapper ProcessorMTOM Input ProcessorURL Decoder Processor
Database (SQL) ProcessorMTOM Output ProcessorUTF16 Decoding Processor
Decompression (ZIP) ProcessorMultipage TIFF to XML ProcessorValidation Processor
Directory ConcatenationNamespace XML ProcessorWS-Security Processor-In Processor
Directory Listing ProcessorOpenAI Processor *WS-Security Processor-Out Processor
EBCDIC Input ProcessorPDF Filling ProcessorXML Formatting Processor
EBCDIC Output ProcessorPDF Text Extractor ProcessorXML Normalization Processor
EDI 999 Generation ProcessorPDF To XML ProcessorXML Wrap Processor
EDI Identification Processor *Pause Transaction ProcessorXPath (Un)Escaping Processor
EDI SNIP Validation Processor *Peek ProcessorXPath Evaluation Processor *
EDI Validation ProcessorPostgreSQL Copy ProcessorXPath Insertion Processor
EDI to Key-Value ProcessorRTF Text Extractor ProcessorXPath Value Retrieval Processor
Email Operation ProcessorRabbitMQ Response ProcessorXSLT Transformation Processor
End of Line Conversion ProcessorRead/Write Attributes ProcessorZIP Archive Compression Processor
Excel Sheet Conversion ProcessorRecord Extension ProcessorZIP Archive Decompression Processor
Exception Thrower Processor RegEx Into Transaction Attribute ProcessorZip Decompress To Directory Processor
Execute Command Line ProcessorRegular Expression Processor
