Symmetric Decryption Processor

Symmetric Decryption Processor in PilotFish integration software decrypts input data using the specified passphrase. At this time, it is distributed only in the USA. The Symmetric Decryption & Encryption Processors allow for simple decryption and encryption using a password. As with all the components of the eiConsole, the user is presented with a graphical interface with easy to configure panels.

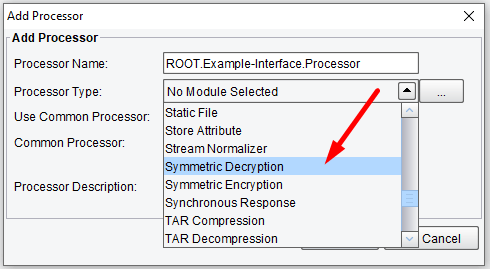

Processor (Adapter) Configuration Drop-Down List

Select the Symmetric Decryption from the drop-down and click on Add Processor.

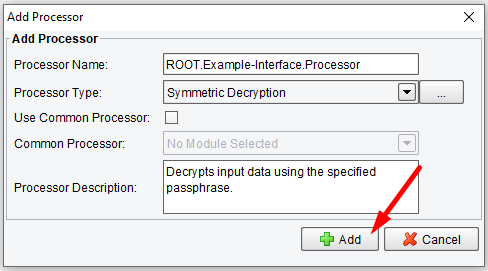

Click on Add Processor

Basic Symmetric Decryption Processor Configuration Options

The Basic tab allows you to set:

• Password – specifies the password the message was encrypted with

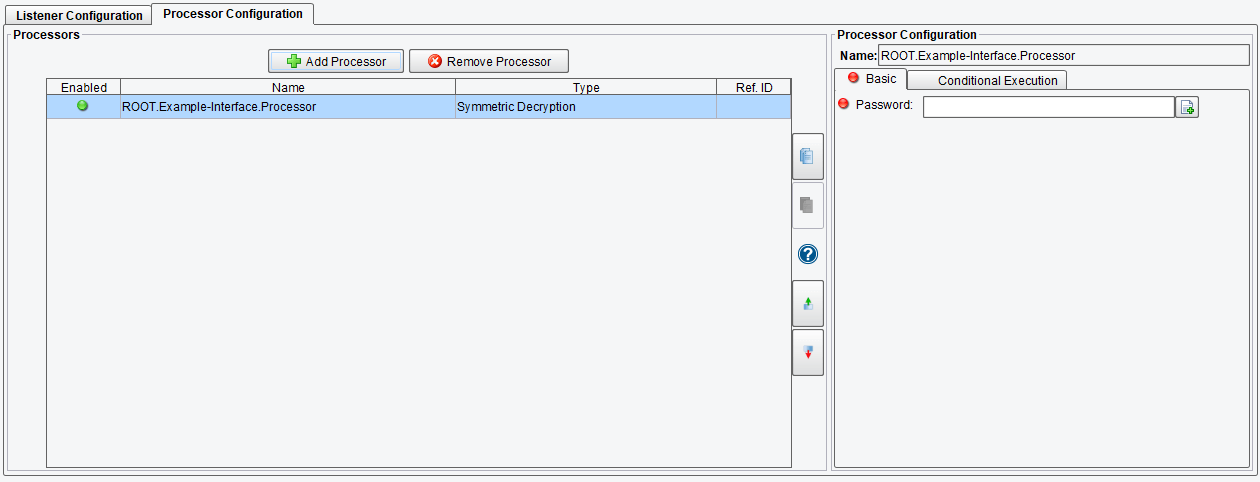

Symmetric Decryption Processor Basic Configuration Options

Conditional Execution Symmetric Decryption Processor Configuration Options

On the Conditional Execution tab, you can set additional Processor execution conditions. The transaction data-dependent condition may be specified here as an enhanced expression. If this expression returns anything other than TRUE (ignore case) – this processor will be skipped. No additional configuration for this Processor is required.

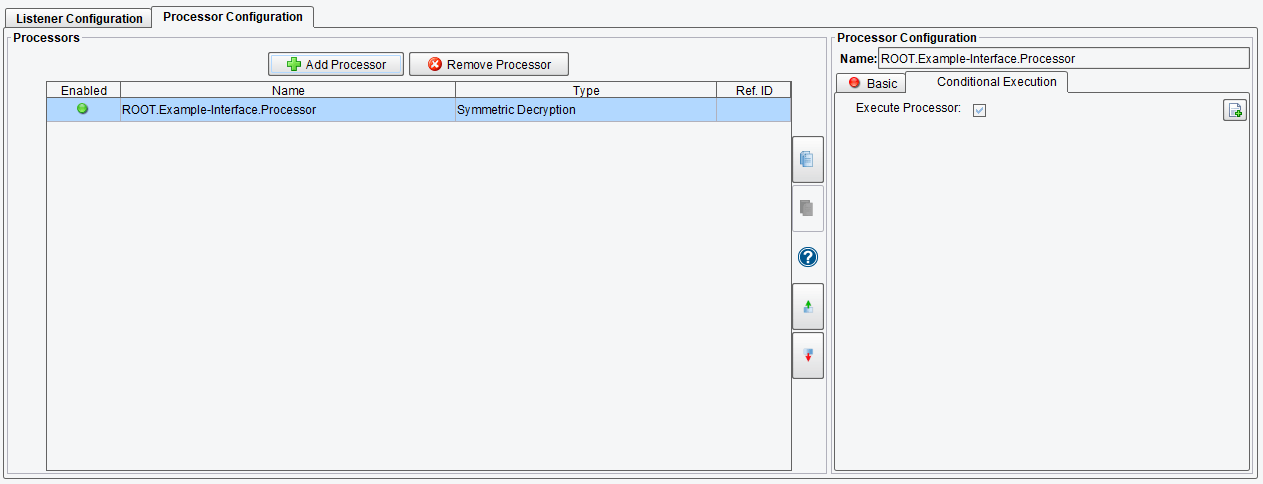

Symmetric Decryption Processor Conditional Execution Configuration Options
