Transformer – AL3 / XML Processor

The Transformer – AL3 / XML Processor transforms AL3 to or from XML.

Select the Processor Configuration tab and click on Add Processor.

Select the Transformer – AL3 / XML Processor from the drop-down.

On the Basic tab, you can specify:

Transformation: the transformation direction indicating if this transformer converts to or from XML

Data Dictionary: the location of the AL3 Data Dictionary file

Data Dictionary Updates: the location of an AL3 Data Dictionary update file, if available

Verbose Debug Logging: determines if verbose logging (for each record and field) is enabled.

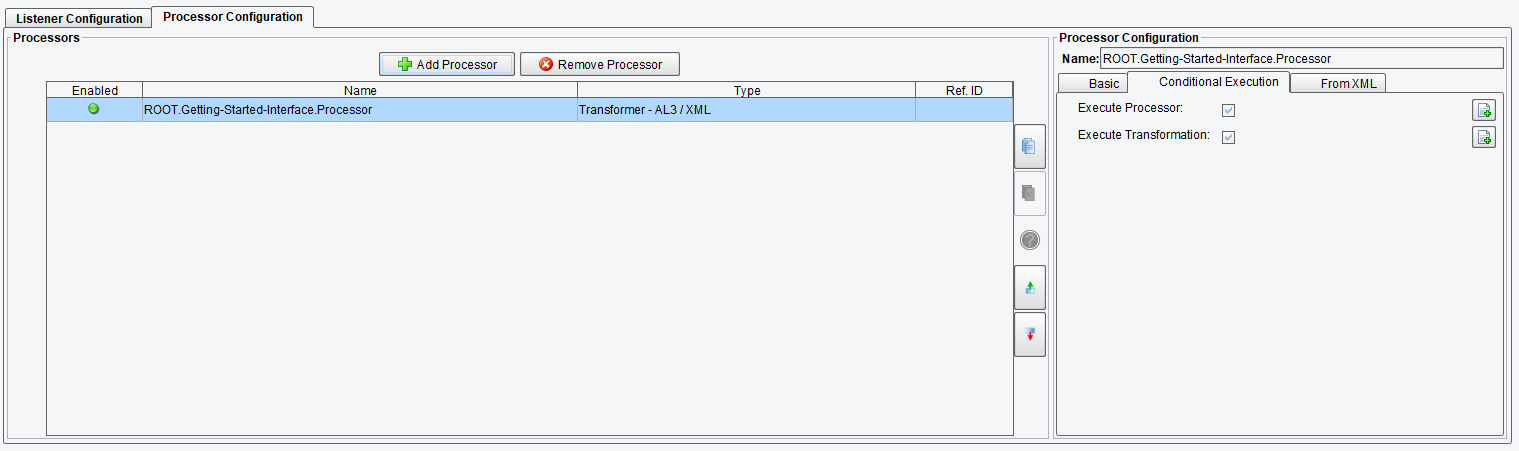

On the Conditional Execution tab, you can specify:

Execute Processor: Transaction data-dependent condition may be specified here as an enhanced expression. If this expression returns anything other than TRUE (ignore case) – this processor will be skipped

Execute Transformation: Transaction data-dependent condition may be specified here as an enhanced expression. If this expression returns anything other than TRUE (ignore case) – this transform will be skipped

On the From XML tab, you can specify:

Positive Value Indicator: suffix used to indicate positive values.
